In the printing and packaging post-press industry, manual paper turning and counting each pile have long been bottlenecks hindering the acceleration of the entire production line. Dongguan Winner Printing Technology, with its long-standing expertise in the automation of paper product processing, believes that integrating the Paper Counter with the Pile Turner can establish a seamless automated paper pile processing line. This streamlines the entire workflow-including paper pile flipping, front-and-back quality inspection, automatic counting, and neat stacking-thereby reducing manual intervention, minimizing issues such as counting errors and paper scratches, and significantly improving overall production efficiency in the post-press stage.

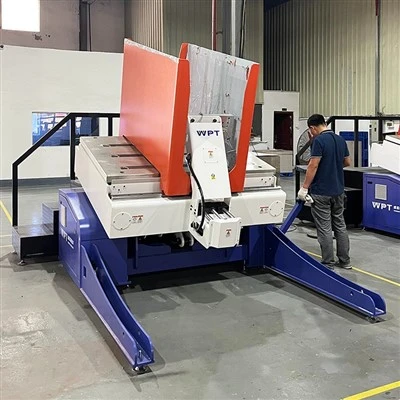

In this comprehensive solution, the Pile Turner serves as the core upstream equipment, responsible for 180° flipping of paper piles, dust removal, and edge-alignment. When the technical team at Dongguan Winner Printing Technology implemented this integrated production line at several domestic packaging factories, they typically began by feeding the paper pile into the Pile Turner. The equipment automatically clamps the pile to flip it, simultaneously blowing air to remove dust and tapping the pile to align the sheets. Once the flipping is complete, the paper stack can immediately undergo front-and-back visual inspection to remove defective sheets. After processing, the stack is transferred via a conveyor system to the Paper Counter, ensuring a seamless transition between processes and eliminating the need for manual handling of paper stacks.
After undergoing flipping and quality inspection by the Pile Turner, the paper stacks are fed into the Paper Counter. The device uses high-precision sensor modules to perform non-contact paper counting without the need to separate the entire stack. According to Winner Printing Technology, the Paper Counter can output counting data in real time and automatically flag stacks with quantity discrepancies, resolving the issues of overcounting and undercounting that commonly occur during manual counting. Counting data can be archived, facilitating batch traceability for the factory. This is particularly suitable for orders with strict quantity control requirements, such as catalogs, color boxes, and high-end books and periodicals.
The core value of the Paper Counter and Pile Turner combined production line lies in integrating paper flipping, quality inspection, and counting into a single automated unit. In traditional operations, workers must manually flip paper stacks to inspect both sides and then count the quantity by hand. This is not only physically demanding, but the frequent handling also increases the risk of paper stacks being bumped or damaged. This integrated solution enables stable, continuous operation and shortens batch changeover times. Additionally, through data sharing, when the Paper Counter detects a missing sheet, it triggers a signal to pause the conveyor, preventing non-conforming paper stacks from entering the next process.
When setting up this automated paper stack handling production line, companies need to plan conveyor pathways based on paper thickness, stack dimensions, and workshop space. The flipping speeds for thin paper and thick cardstock, as well as the Paper Counter's sensing parameters, require separate calibration; the production line can be equipped with a conveyor platform as needed, supporting standalone operation or integration with upstream and downstream equipment such as cutters and label applicators, flexibly adapting to the production capacity requirements of both small-to-medium-sized printing shops and large-scale packaging factories.
In summary, the integrated paper pile handling solution combining the Paper Counter with the Pile Turner is a cost-effective choice for automating post-press processes. It streamlines multi-step workflows while stabilizing yield rates and delivery cycles. Based in Dongguan, Dongguan Winner Printing Technology provides printing and packaging companies with design services, on-site commissioning, and technical training for integrated Paper Counter and Pile Turner production lines, helping factories complete the automation upgrade of their post-press processes.
